150A Isolator
Default Title
Default Title

TRE4x4 - 150A Isolator

Adding another set of batteries to the car, the original car generator can be used to charge...
Vendor: EZ Outdoors
SKU: EZ-MS-BI0870
Availability: In Stock
Product Type: Isolator
Subtotal: Dhs. 596.35

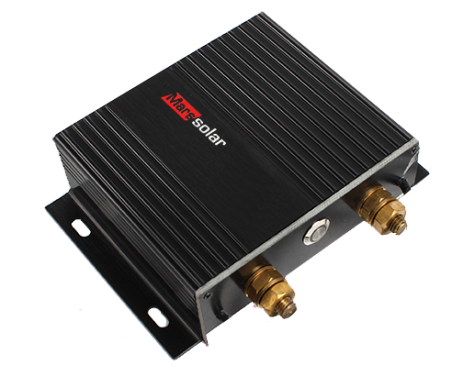

150A Isolator

TRE4x4 - 150A Isolator

Dhs. 596.35

TRE4x4 - 150A Isolator

Dhs. 596.35
Adding another set of batteries to the car, the original car generator can be used
to charge the installed battery. When the car is turned off, the starting battery and
the additional battery are automatically isolated to ensure that the starting battery
is not discharged. Intelligent battery detection reduces unnecessary switching
operations, avoids various faults caused by improper operation, and does not
require the ignition switch to switch signal lines.
MARS-SOLAR 12/24V battery isolator is not simply based on the battery voltage
and a fixed delay, but rather determines the trend (voltage rise or fall) and only
performs the reverse operation if the reverse trend exceeds a certain time. The
delay time is the voltage change trend determines that in the case of large current
discharge.
TRE battery isolators will make an intelligent judgment, and will not disconnect the
additional battery due to the excessive current of the load, such as electric winch,
super sound, inverter, etc.

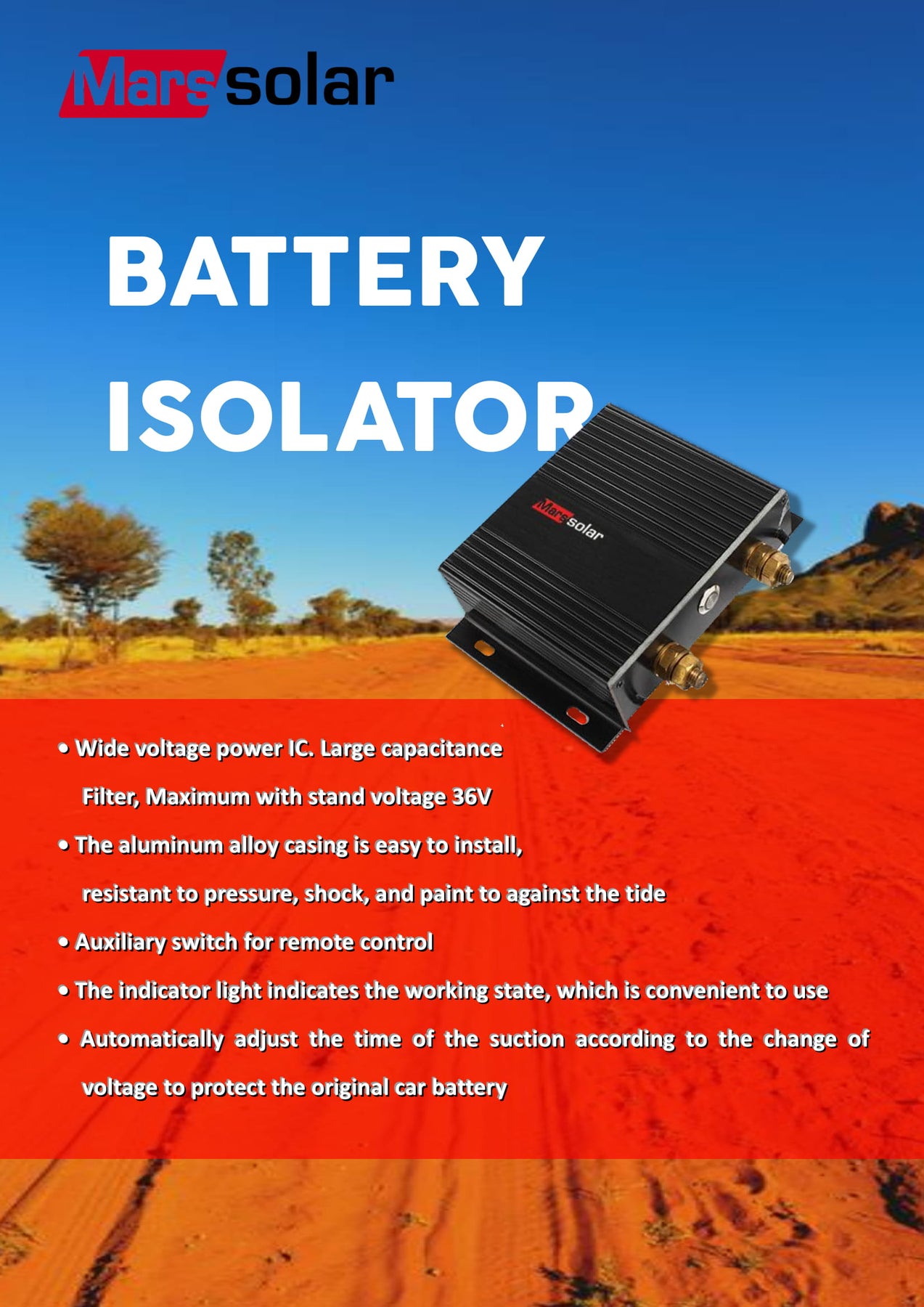

Product Features:

·Wide voltage power IC.
Large capacitance filter.
Maximum withstand voltage 36V.
·The aluminum alloy casing is easy
to install, resistant to pressure,
shock, and paint to against the
tide.
·Auxiliary switch for remote control
·The indicator light indicates the
working state, which is convenient
to use.
·Automatically adjust the time of
the suction according to the
change of voltage to protect the
original car battery.

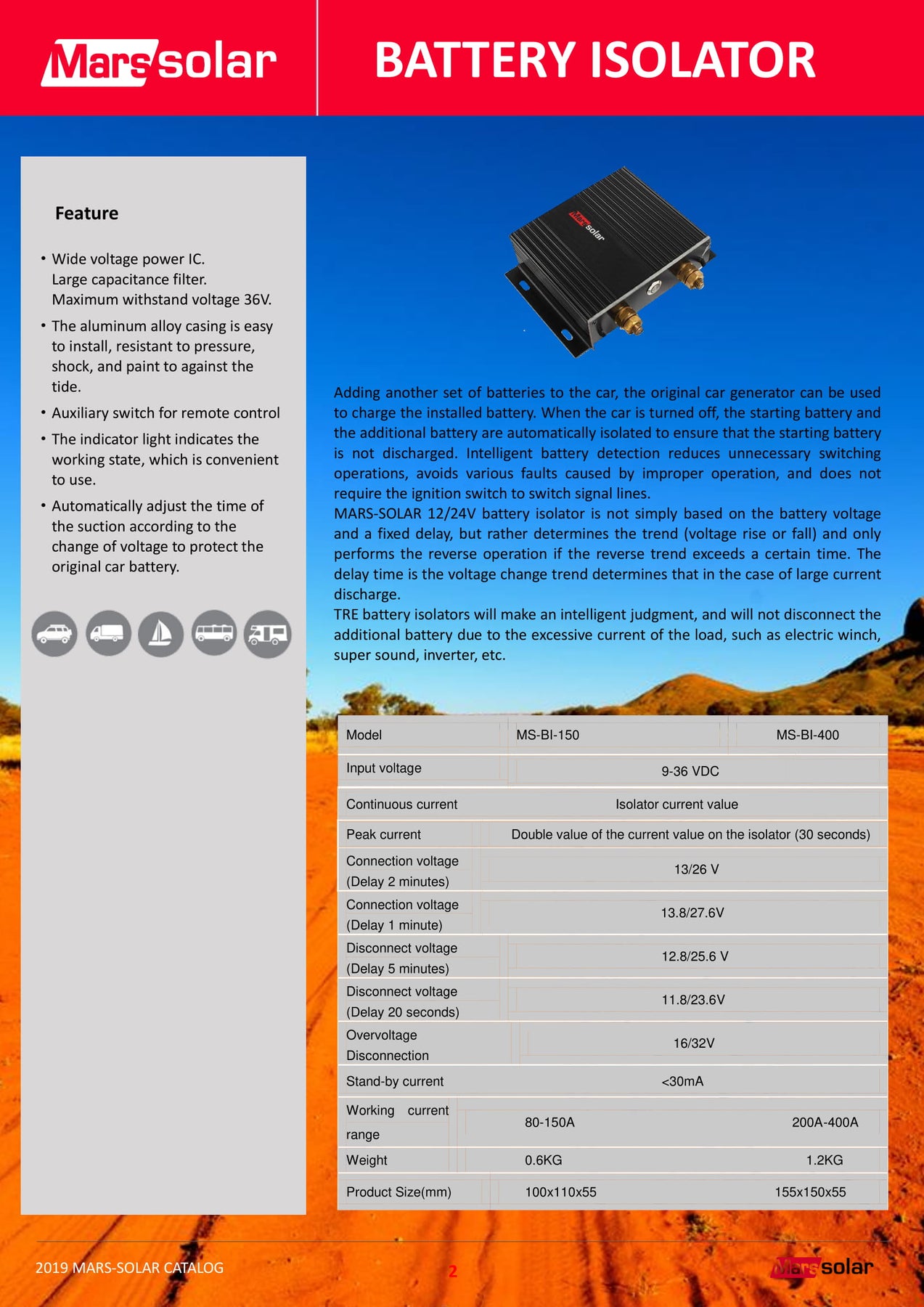

2019 MARS-SOLAR CATALOG
BATTERY ISOLATOR
Adding another set of batteries to the car, the original car generator can be used
to charge the installed battery. When the car is turned off, the starting battery and
the additional battery are automatically isolated to ensure that the starting battery
is not discharged. Intelligent battery detection reduces unnecessary switching
operations, avoids various faults caused by improper operation, and does not
require the ignition switch to switch signal lines.
MARS-SOLAR 12/24V battery isolator is not simply based on the battery voltage
and a fixed delay, but rather determines the trend (voltage rise or fall) and only
performs the reverse operation if the reverse trend exceeds a certain time. The
delay time is the voltage change trend determines that in the case of large current
discharge

Specification

*Continuous current Isolator current value
*Peak current Double value of the current value on the isolator (30 seconds)
*Connection voltage(Delay 2 minutes)13/26 V
*Connection voltage(Delay 1 minute) 13.8/27.6V
*Disconnect voltage(Delay 5 minutes) 12.8/25.6 V
*Disconnect voltage(Delay 20 seconds) 11.8/23.6V
*Overvoltage Disconnection 16/32V
*Stand-by current<30mA
Working current range80-150A
Product Size(mm) 100x110x55
