Linear-12 Elite LED Driving Light


  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon
Order on WhatsApp

Available in Standard and Elite grades, on the one hand the Linear range represents our most cost-effective products through the adoption of 3W LEDs, the same as used in our WRC lighting solutions, meticulously engineered and tested to optimise lighting performance for everyday road use. On the other, a slimline, aerodynamic design, with a real emphasis on high-end styling, the lamps are simple to install, while delivering astonishing levels of illumination.

  1. LENGTH: 382MM / 15""
  2. 8,100 LUMENS / 84W
  3. DOUBLE THE LIGHT OUTPUT ON ELITE GRADE PRODUCTS
  4. LOW PROFILE DESIGN FOR SIMPLIFIED INSTALLATION

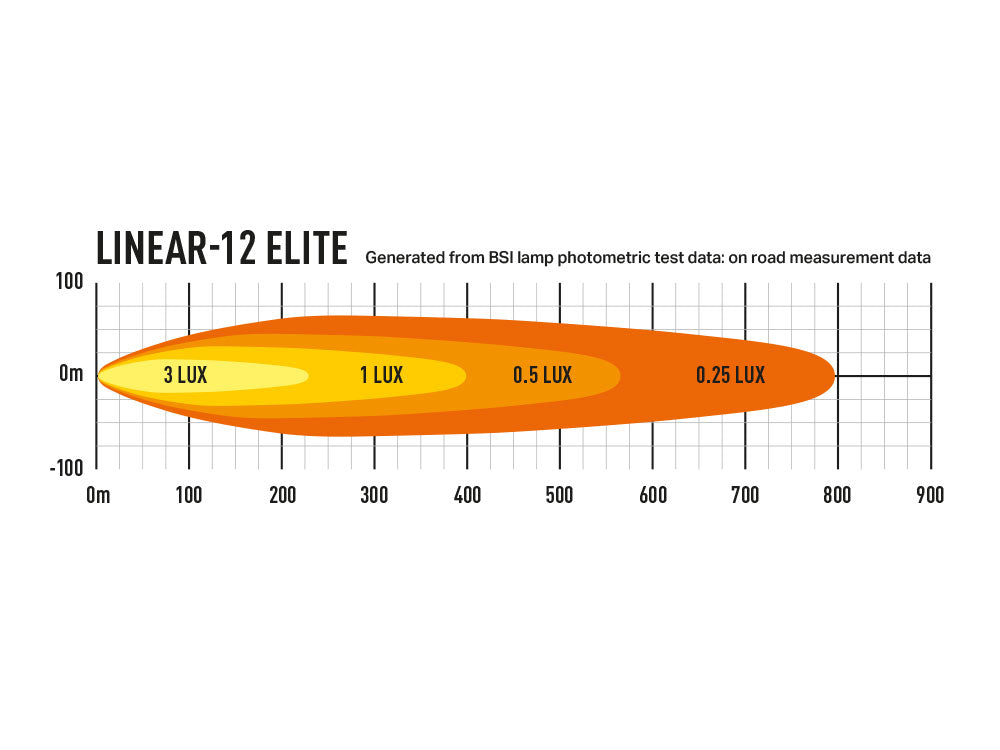

  5. 'WIDE' BEAM PATTERN PERFECT FOR ROAD USE
  6. ECE APPROVED (EXCEPT 24 FLOOD / 48)
  7. 5 YEAR WARRANTY

Specification

  • Based on: 1x Linear-12 Elite LED Lamp.
  • Voltage Range (DC) 10-32V
  • LED Life 50,000 hours
  • Weight 800 gr
  • HIGH BEAM FUNCTION
  • Total Luminous Flux 8100 Lm
  • Total Driver 'FOV' Flux † 5767 Lm
  • Colour Temperature 5000K
  • Number of High Output LEDs 24
  • Power Consumption 84 Watts
  • Current Draw (at 14.4V) 5.8 Amps
  • CERTIFICATION
  • High Beam ECE R112
  • ECE Reference 37.5

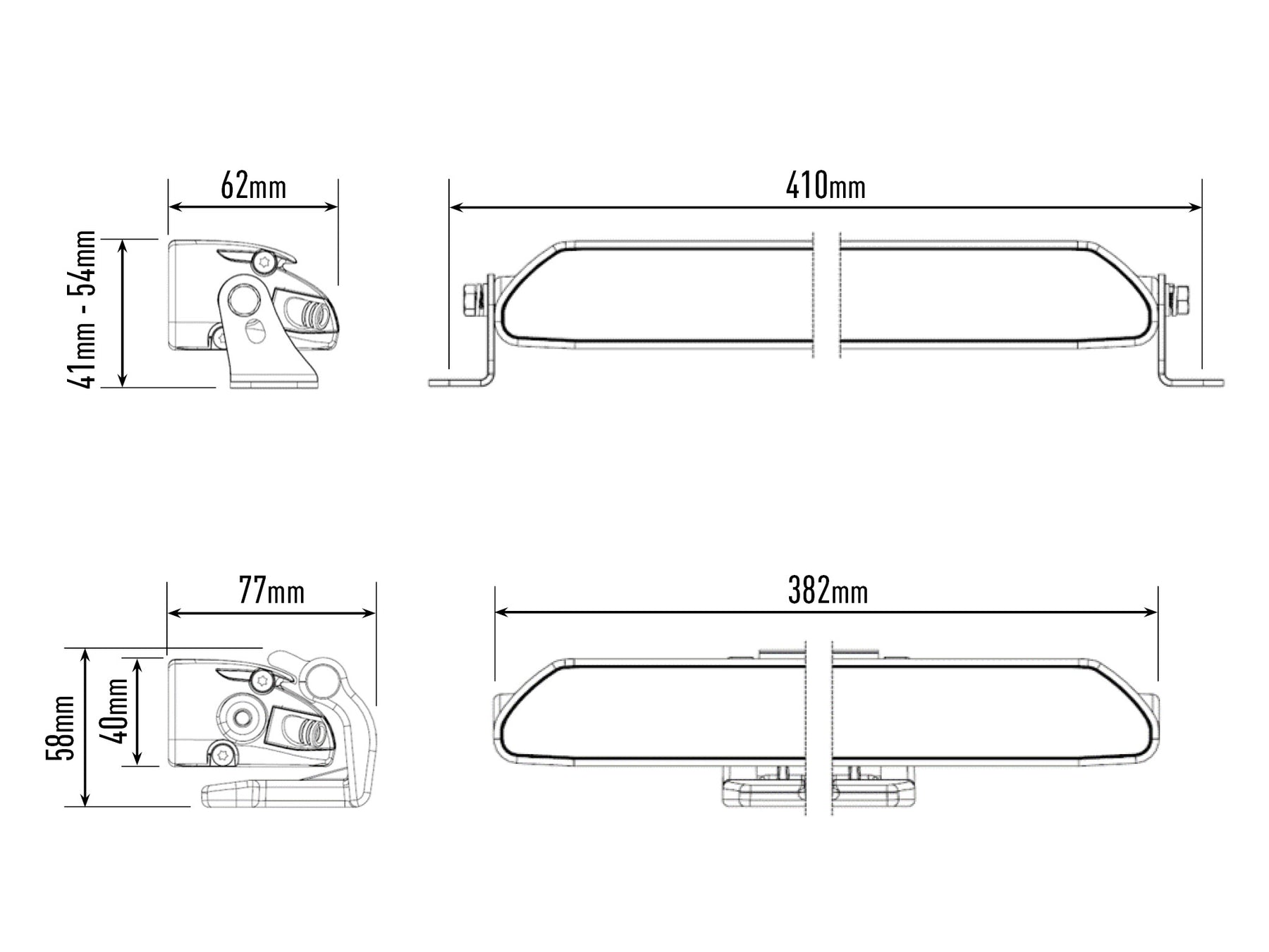

  • DIMENSIONS
  • Width 382 mm
  • Depth 62 mm
  • Height 40 mm
  • G.W : 1.2 Kgs
  • Box Dimension : 40x16x5 cm
