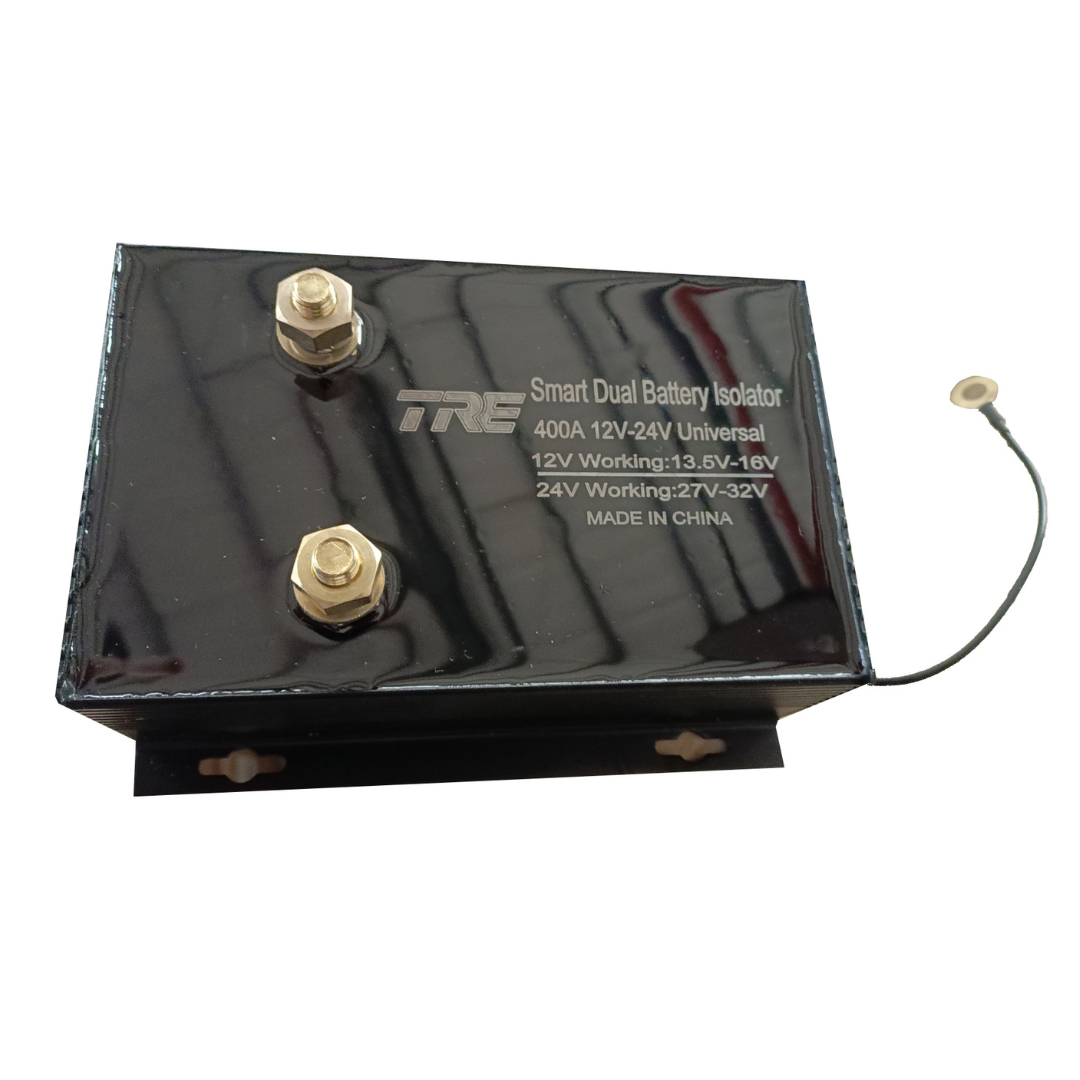

400A Isolator

This isolator is 12V/24V universal type, The isolator is recognized as 24V system when the voltage is...
Vendor: EZ Outdoors
SKU: EZ-Sl-BI-400
Barcode: 120300861702024
Availability: Out Of Stock
Product Type: Isolator

Get notified when back in stock

400A Isolator

400A Isolator

Dhs. 0.00

400A Isolator

Dhs. 0.00
This isolator is 12V/24V universal type, The isolator is recognized as 24V system when the voltage is
higher than 18V. After the primary and secondary batteries are connected, the two voltmeters show
basically the same, if the difference is large, check whether the isolator works normally. The auxiliary
battery must be installed to understand how much the generator power is, the auxiliary battery
capacity is too large the generator power is not enough to fill the auxiliary battery, but also burn the
generator. The auxiliary battery with lithium battery also needs to know how much voltage is when it is
fully charged, and the voltage cannot be higher than 13.5V/27V. If the auxiliary battery voltage is
higher than 13.5V/27V, the isolator cannot be disconnected normally, and the voltage should be
disconnected for 10 minutes after the voltage drops below 13V/26V.

Product Features:

This isolator is 12V/24V universal type, The isolator is recognized as 24V system when the voltage is
higher than 18V. After the primary and secondary batteries are connected, the two voltmeters show
basically the same, if the difference is large, check whether the isolator works normally. The auxiliary
battery must be installed to understand how much the generator power is, the auxiliary battery
capacity is too large the generator power is not enough to fill the auxiliary battery, but also burn the
generator. The auxiliary battery with lithium battery also needs to know how much voltage is when it is
fully charged, and the voltage cannot be higher than 13.5V/27V. If the auxiliary battery voltage is
higher than 13.5V/27V, the isolator cannot be disconnected normally, and the voltage should be
disconnected for 10 minutes after the voltage drops below 13V/26V.

Specifications:

*Continuous current: Isolator current value
*Peak current :Double value of the current value on the isolator (30 seconds)
*Connection voltage(Delay 2 minutes):13/26 V
*Connection voltage(Delay 1 minute) :13.8/27.6V
*Disconnect voltage(Delay 5 minutes) :12.8/25.6 V
*Disconnect voltage(Delay 20 seconds) :11.8/23.6V
*Overvoltage Disconnection :16/32V
*Stand-by current:<30mA
*Working current range:200A-400A
*Product Size(mm):155x150x55
